The optional GPU compute kernel is a WGSL port of the same transport physics the CPU path runs. It is checked against the CPU reference by a tiered equivalence harness in crates/indicatrix/src/renderer/gpu: Tier 1 checks bit-exact integer and RNG state; Tier 2 checks individual ported functions (Sellmeier evaluation, Fresnel, ray-plane intersection, and more) against a per-function ULP budget; Tier 3 does a statistical comparison (Welford mean/variance) of full rendered images between the two backends. A separate furnace check drives the same hero-wavelength/ CIE-CMF-integration pipeline (no gemstone geometry) against a uniform, wavelength-independent radiance environment and checks that both the CPU reference and the GPU port converge to the analytically computable true value within their own ULP budget.

• Tier 1 — bit-exact RNG and integer state (renderer/gpu/rng_check.rs)
• Tier 2 — per-function ULP budgets (renderer/gpu/ulp.rs)
• Tier 3 — statistical image comparison, CPU vs. GPU (renderer/gpu/estimator_check/image_comparison.rs)
• Furnace anchor — CPU/GPU convergence against an analytically-computed target for the CMF-integration pipeline (renderer/gpu/furnace_check.rs)
• Shader validation — every WGSL unit is parsed with naga in renderer/gpu/shader_validation_tests.rs
• Cross-backend merge — a CPU sample range plus a GPU sample range, merged the production way, checked statistically against an independent CPU reference (renderer/gpu/merge_tests.rs); every backend drops a non-finite sample but still counts it, under one shared rule

3Renders

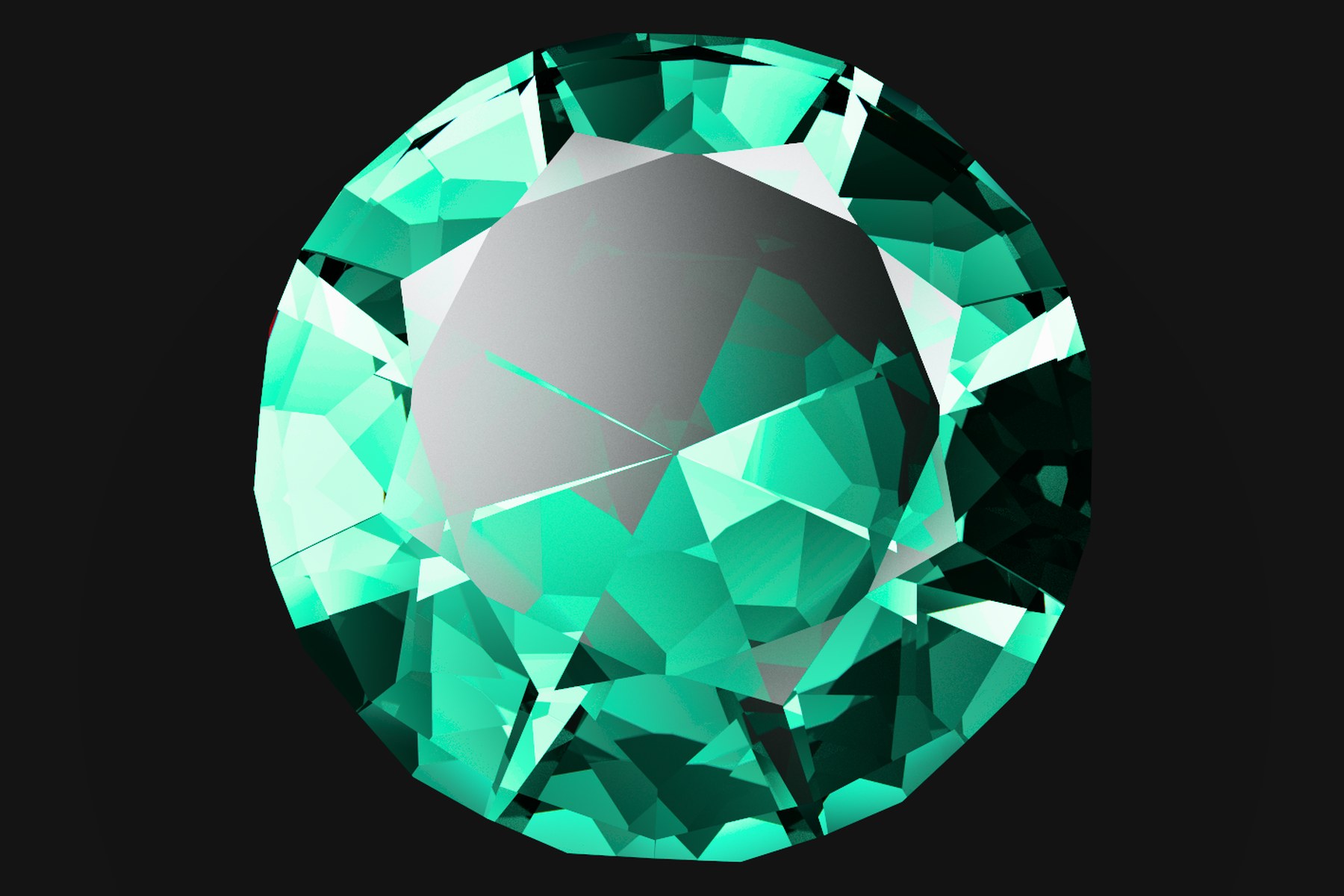

Look at the dispersion fringes along the crown facet edges — continuous colour, not banded RGB.

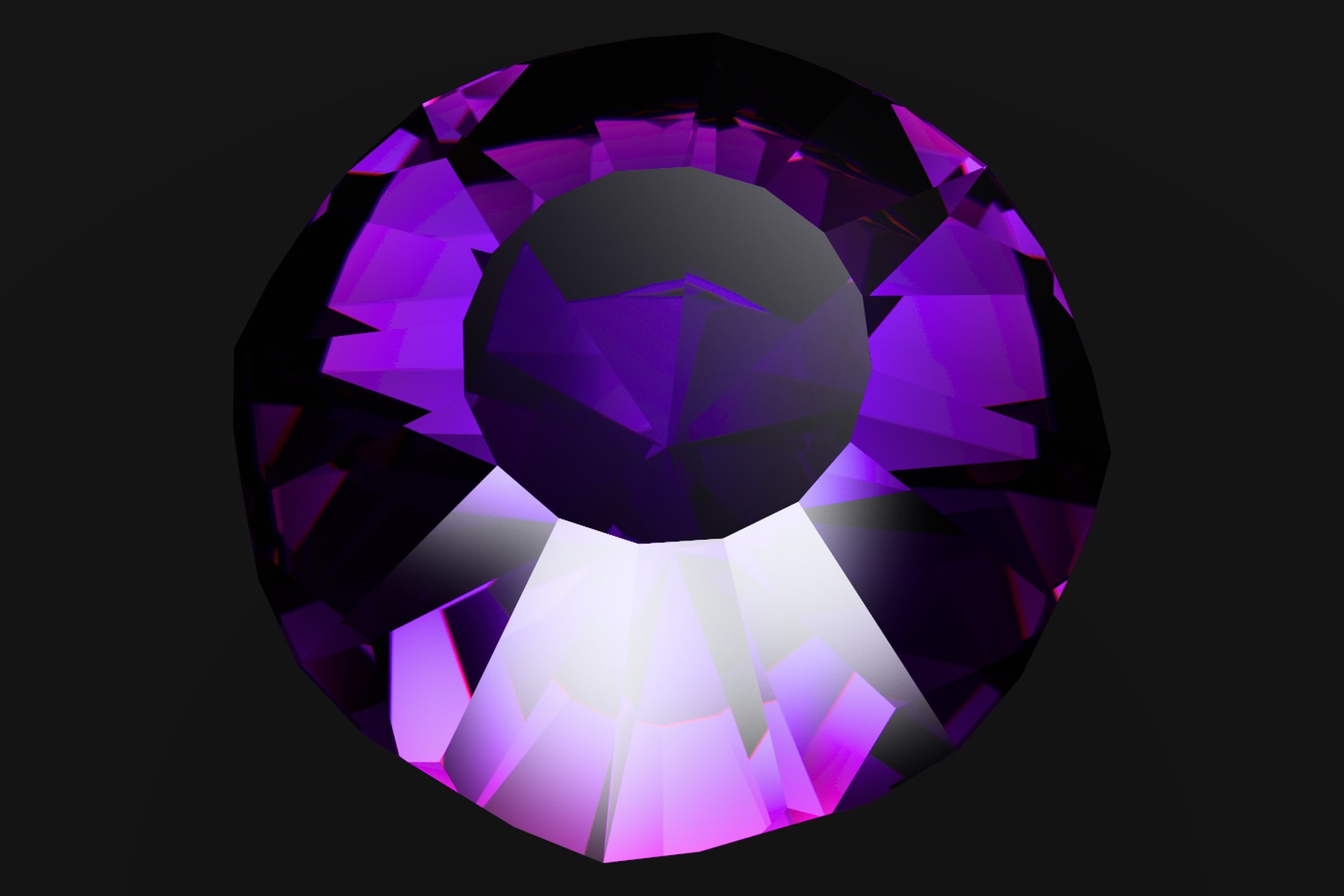

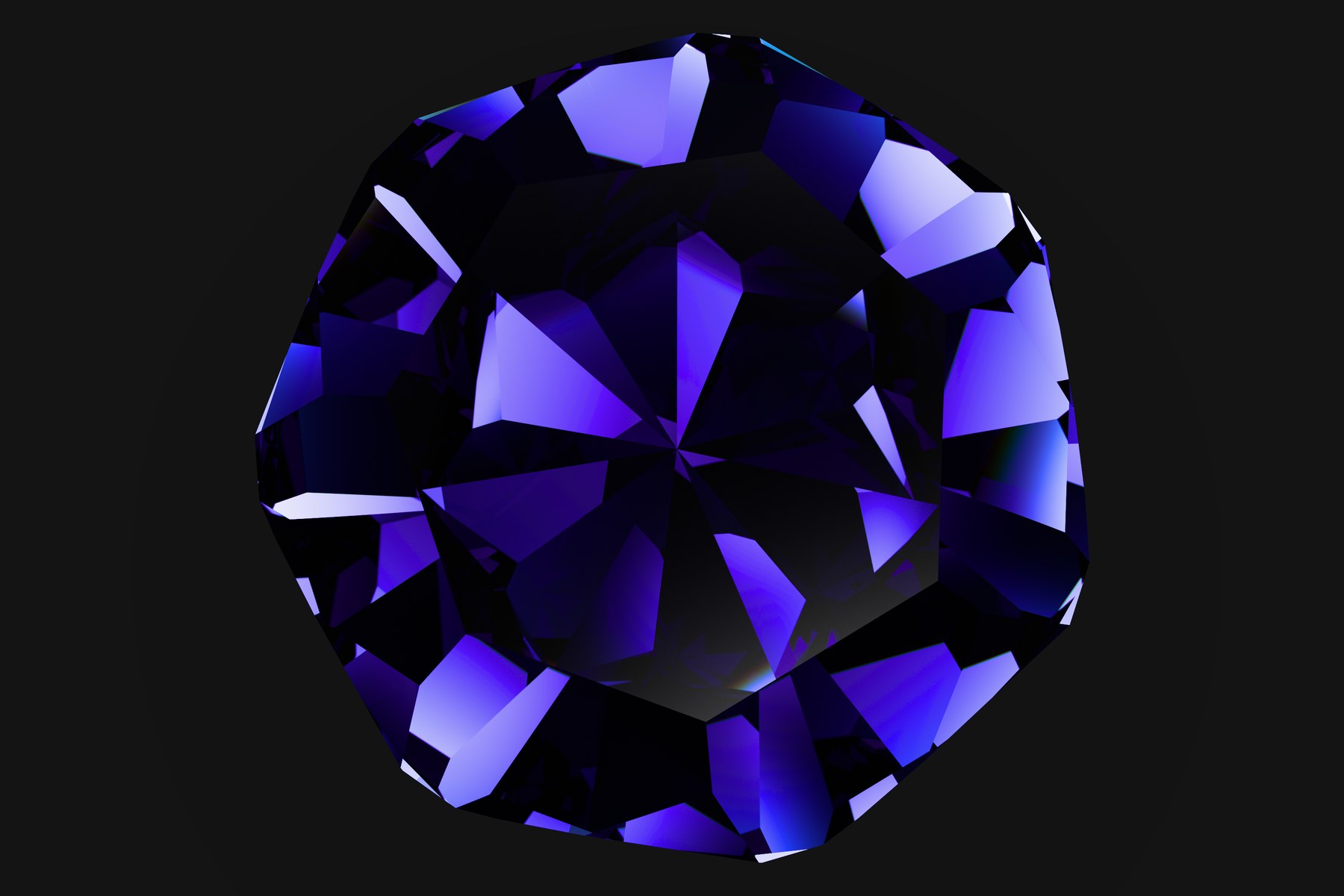

Look at the extinction areas near the pavilion where pleochroic absorption darkens the stone.

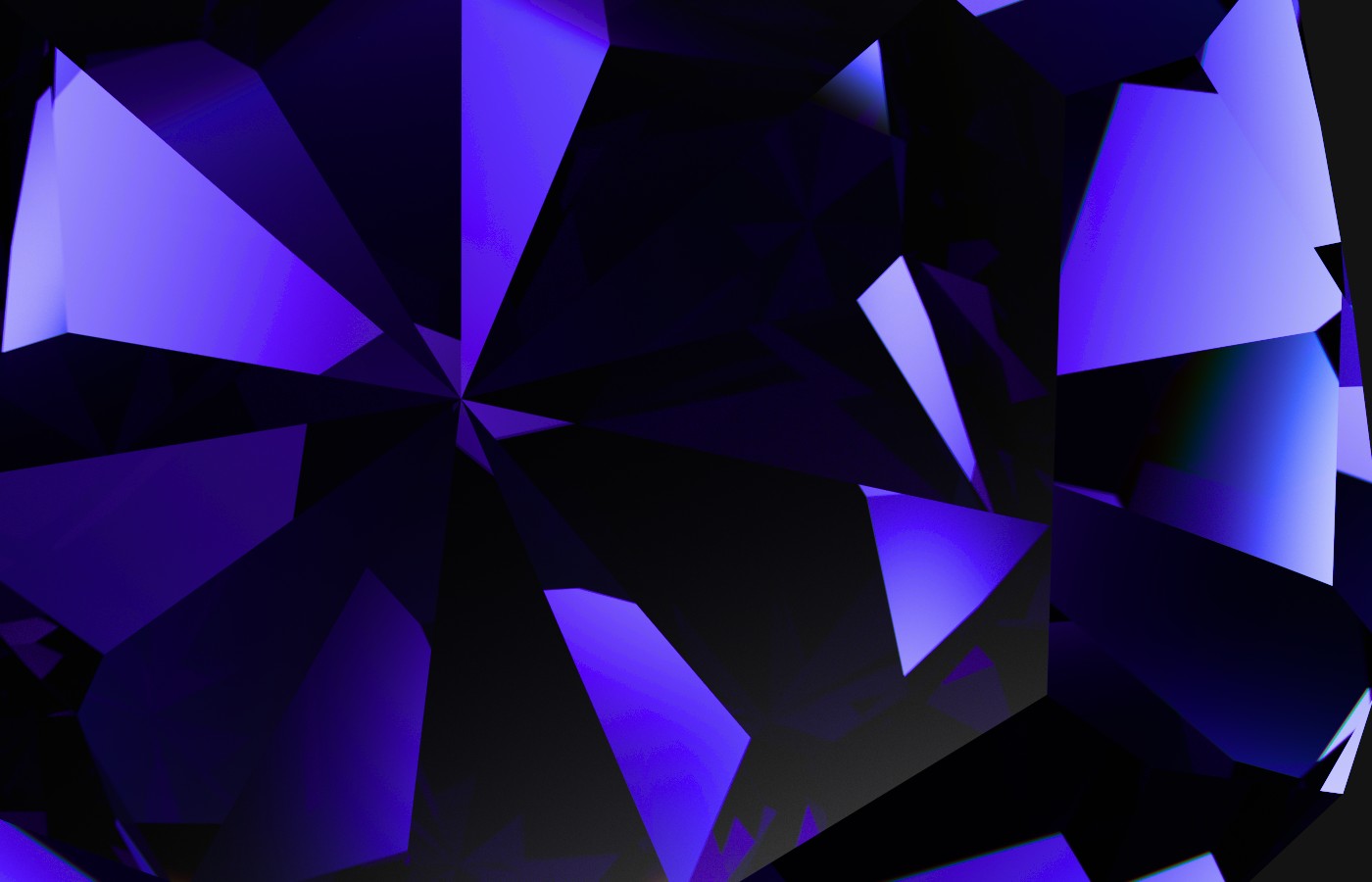

Look at the per-pixel noise level at this sample count — no denoiser applied.

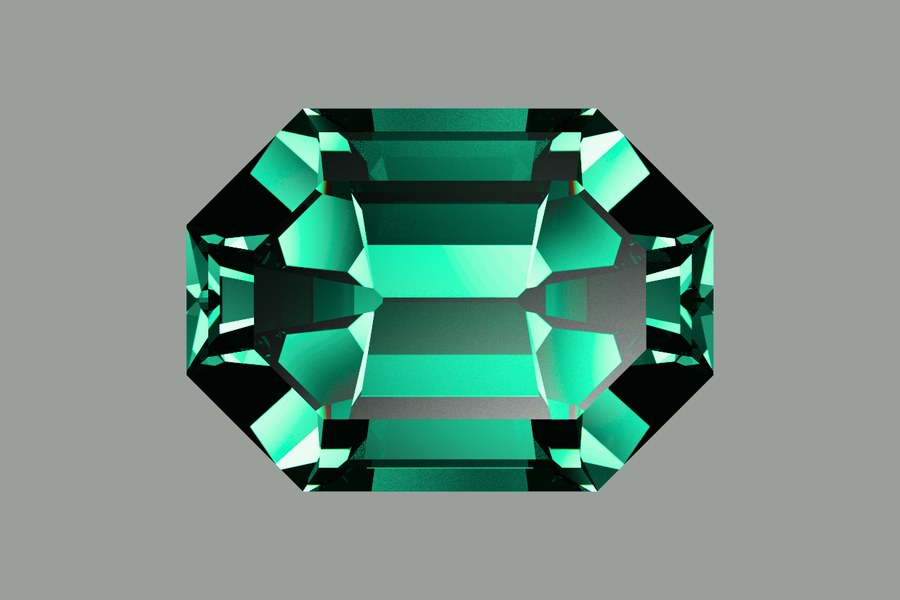

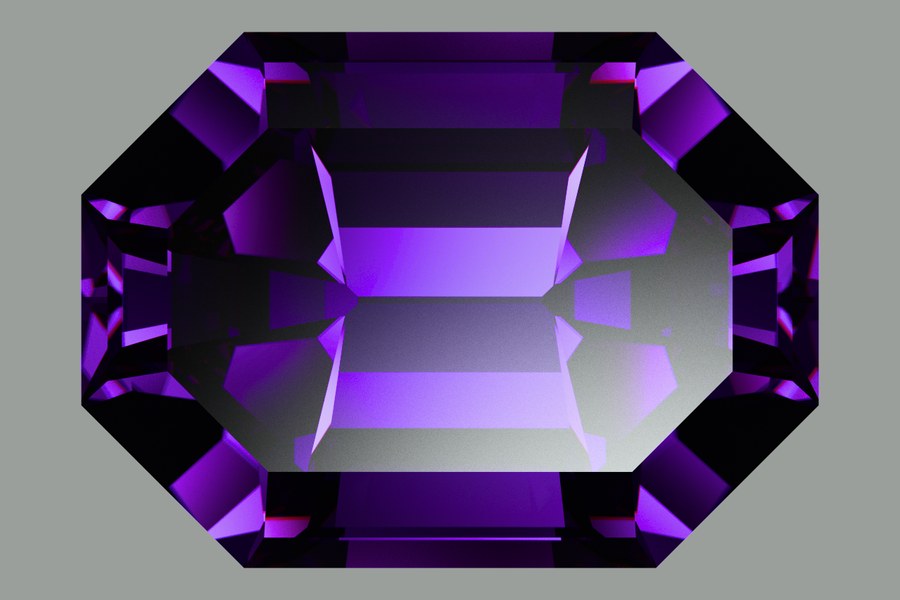

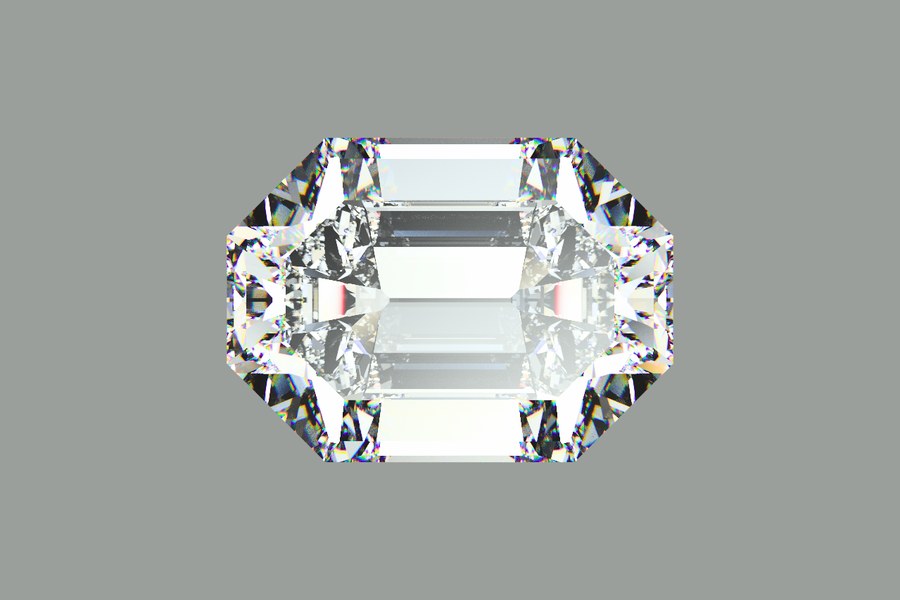

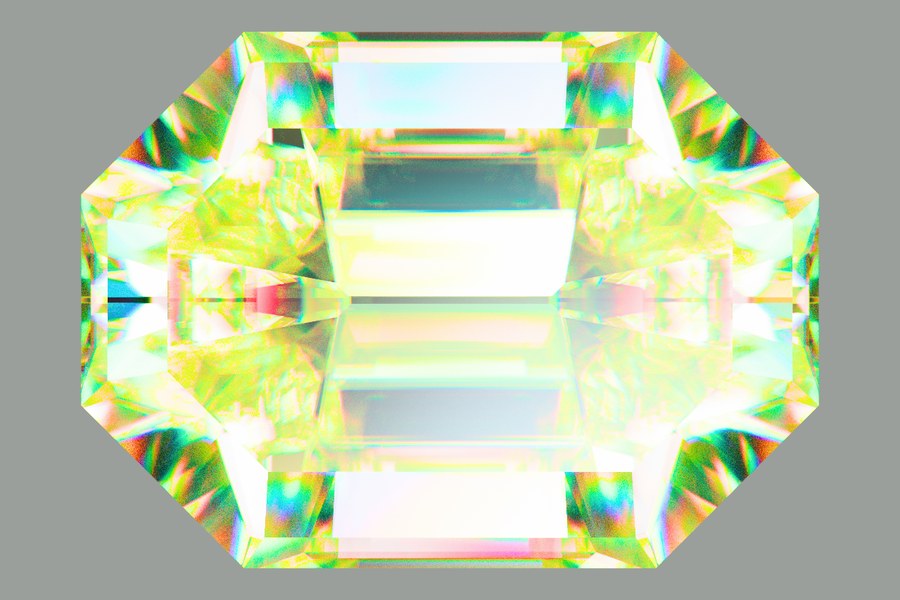

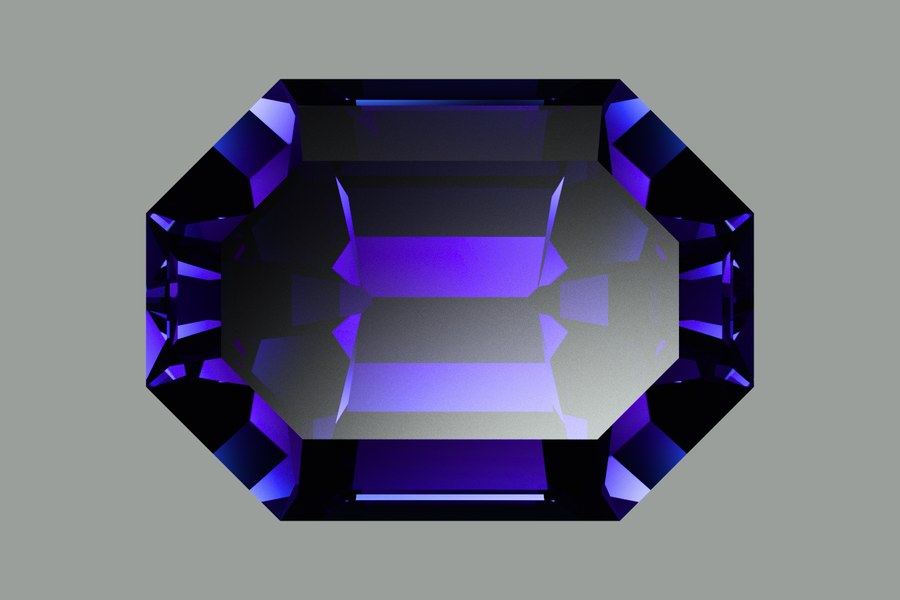

Identical geometry, camera, light tent and backdrop card — only the material changed. Diamond and rutile share a cut and differ almost entirely in dispersion (0.0256 against ≈0.300); sapphire and tanzanite differ in where their absorption bands sit, not in brightness.

4The studio

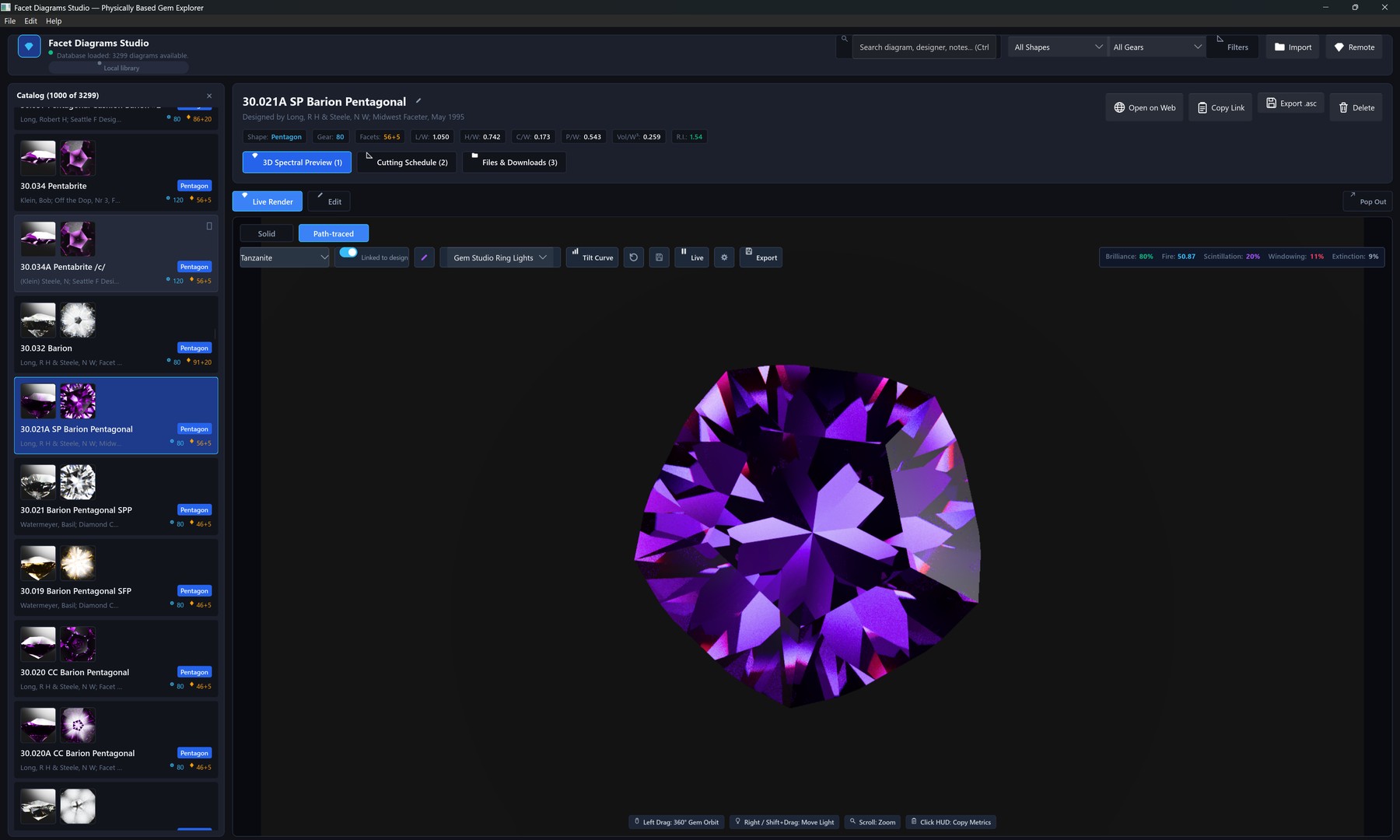

indicatrix-cut is the desktop application: a design library on the left, a live 3D viewport on the right. The library is a local SQLite database (no account) searchable by shape, index gear, facet count, and length/width ratio; it can also switch to browsing the remote coordinator's design catalogue over the same network connection used for render offload (see section 7). From the same library, the beta Rough planner (Library → Plan Rough...) ranks up to 10 ways of cutting a block of rough into stones (section 5).

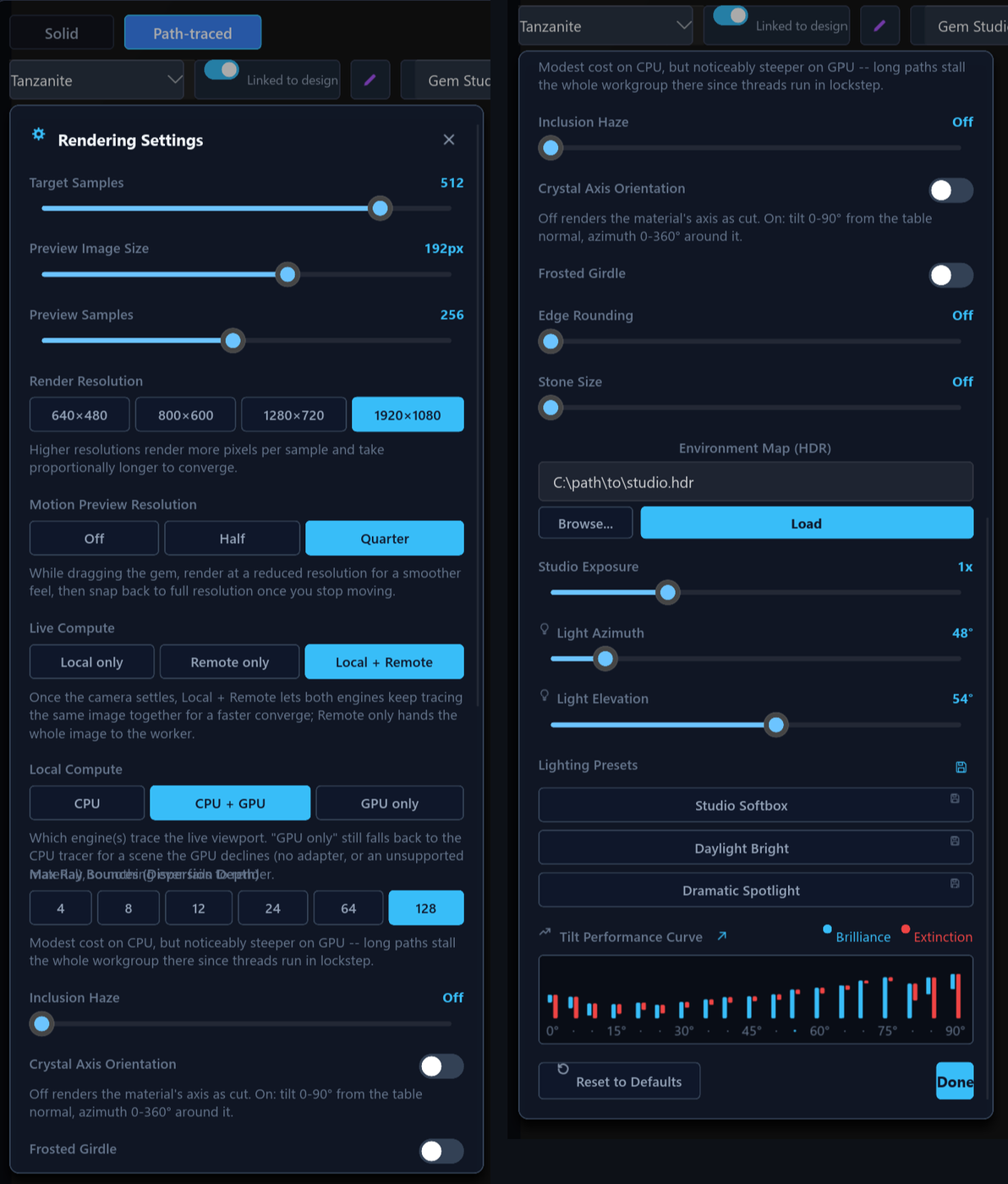

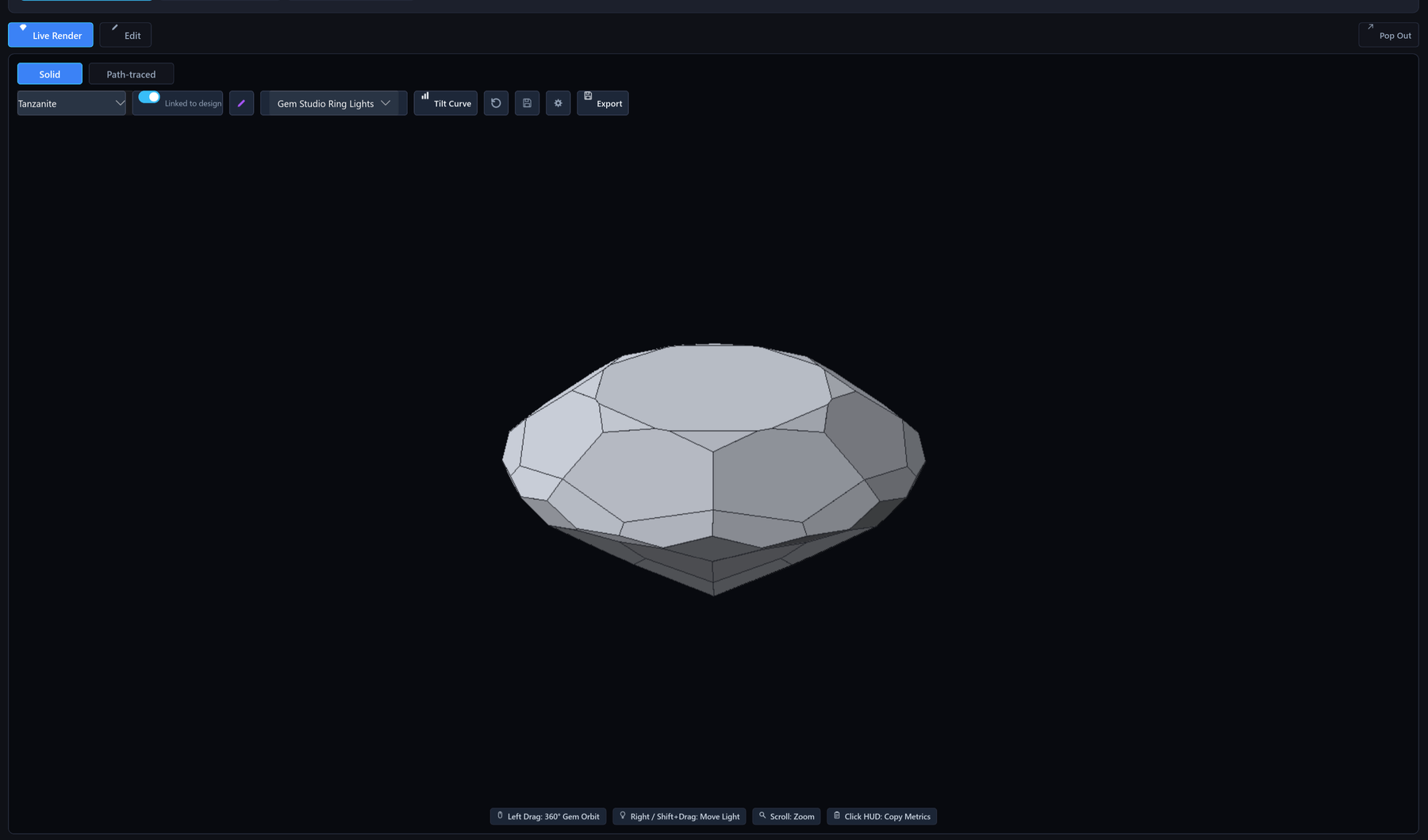

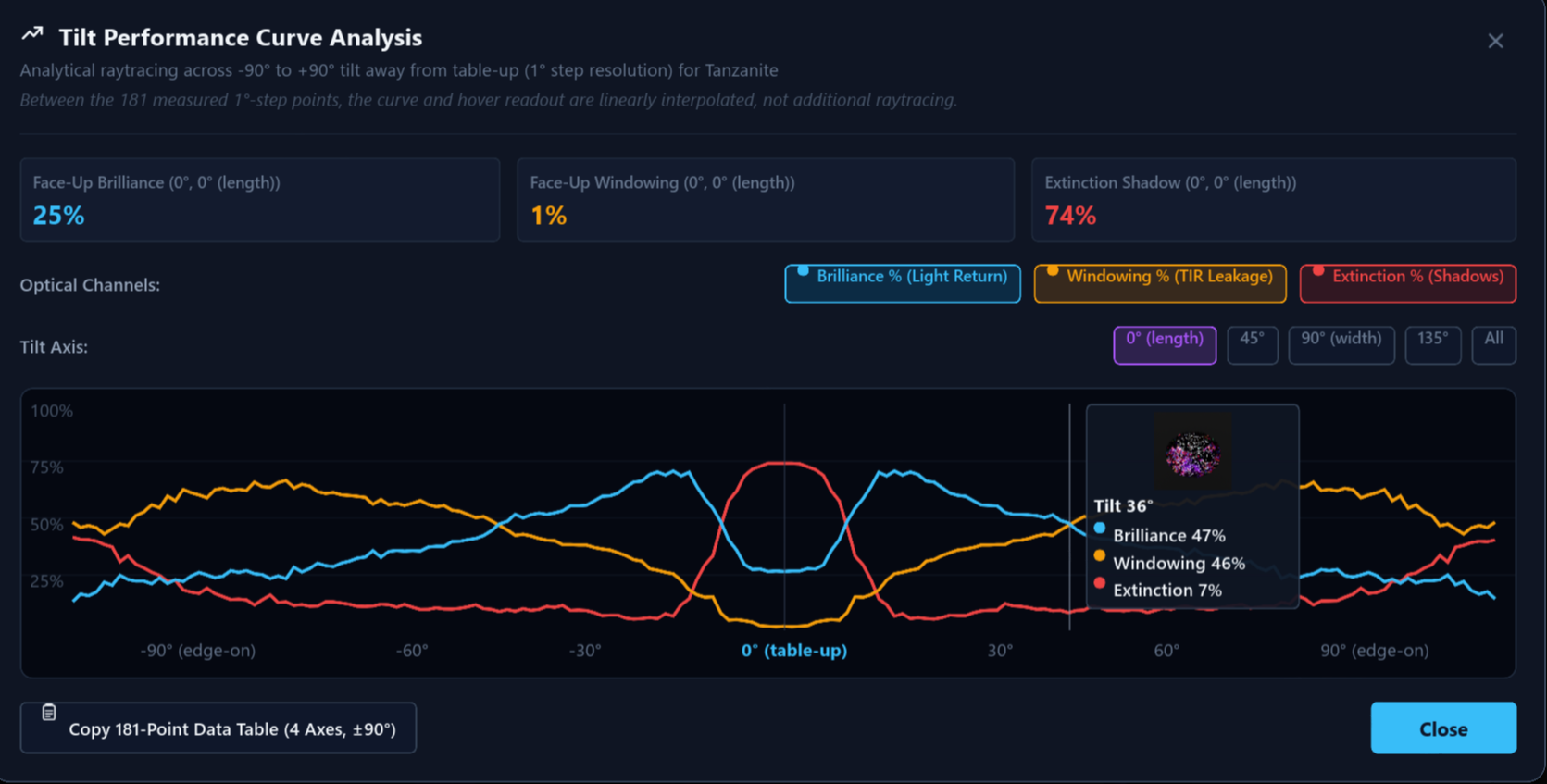

The viewport renders either a fast solid preview or the full path tracer, with orbit camera controls, material selection, lighting presets, and support for loading custom HDR environment maps. Seven lighting presets span three environment models — an analytic studio rig, an ISO hemisphere, a jewellery light tent and a daylight sky — and a backdrop card can be placed behind the stone without the stone's own optics ever seeing it (see the physics page). Master stills export up to 8192 × 8192 pixels at up to 32 768 samples per pixel (MAX_EXPORT_DIM, MAX_EXPORT_SPP in apps/indicatrix-cut/src/bridge/export_thread/params.rs). If the GPU compute path loses its device mid-session, the viewport re-acquires it once and retries the same frame; if that also fails it falls back to the CPU tracer for the rest of the session with a visible status message, rather than freezing.

5Faceting CAD (beta)

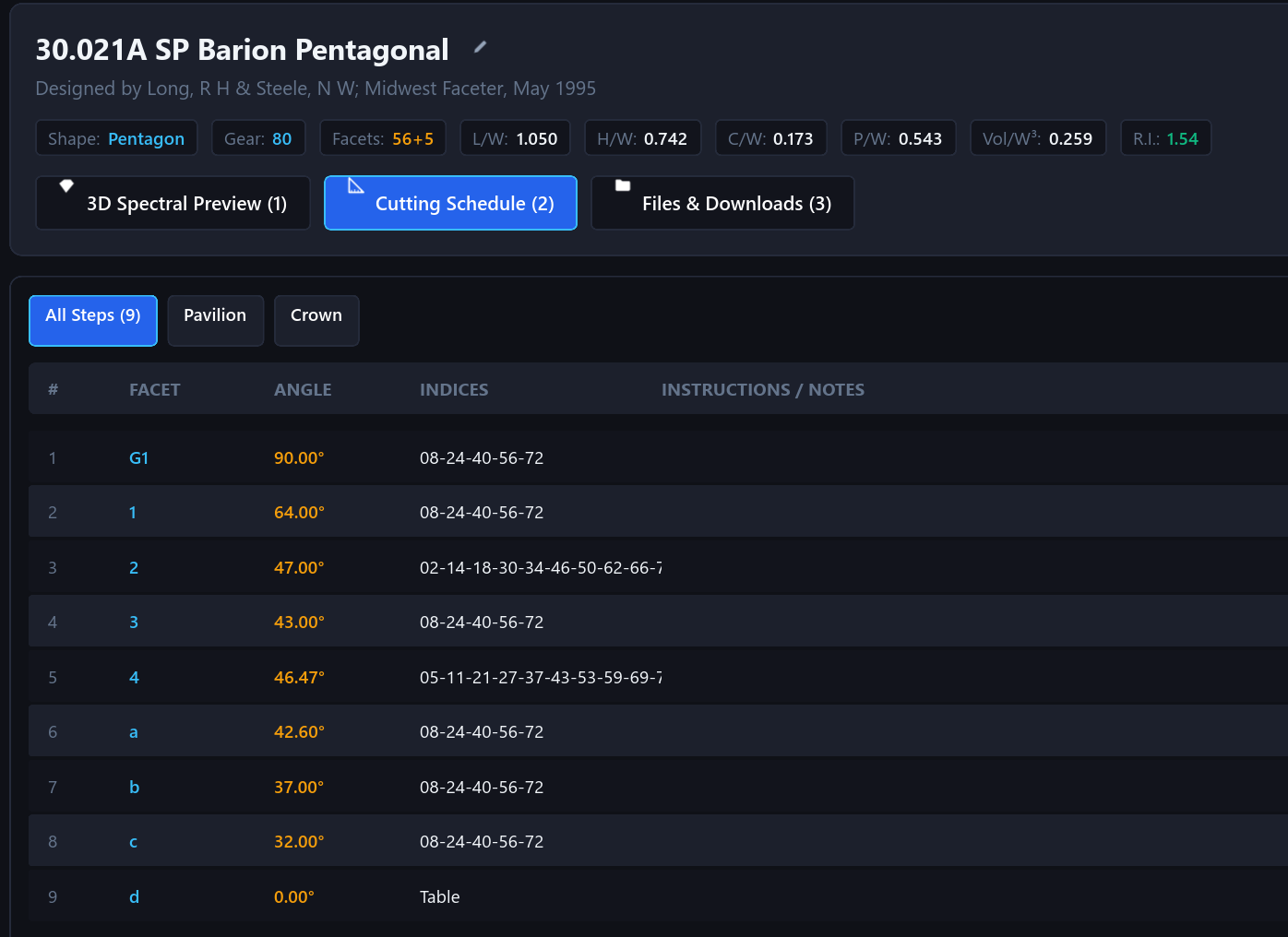

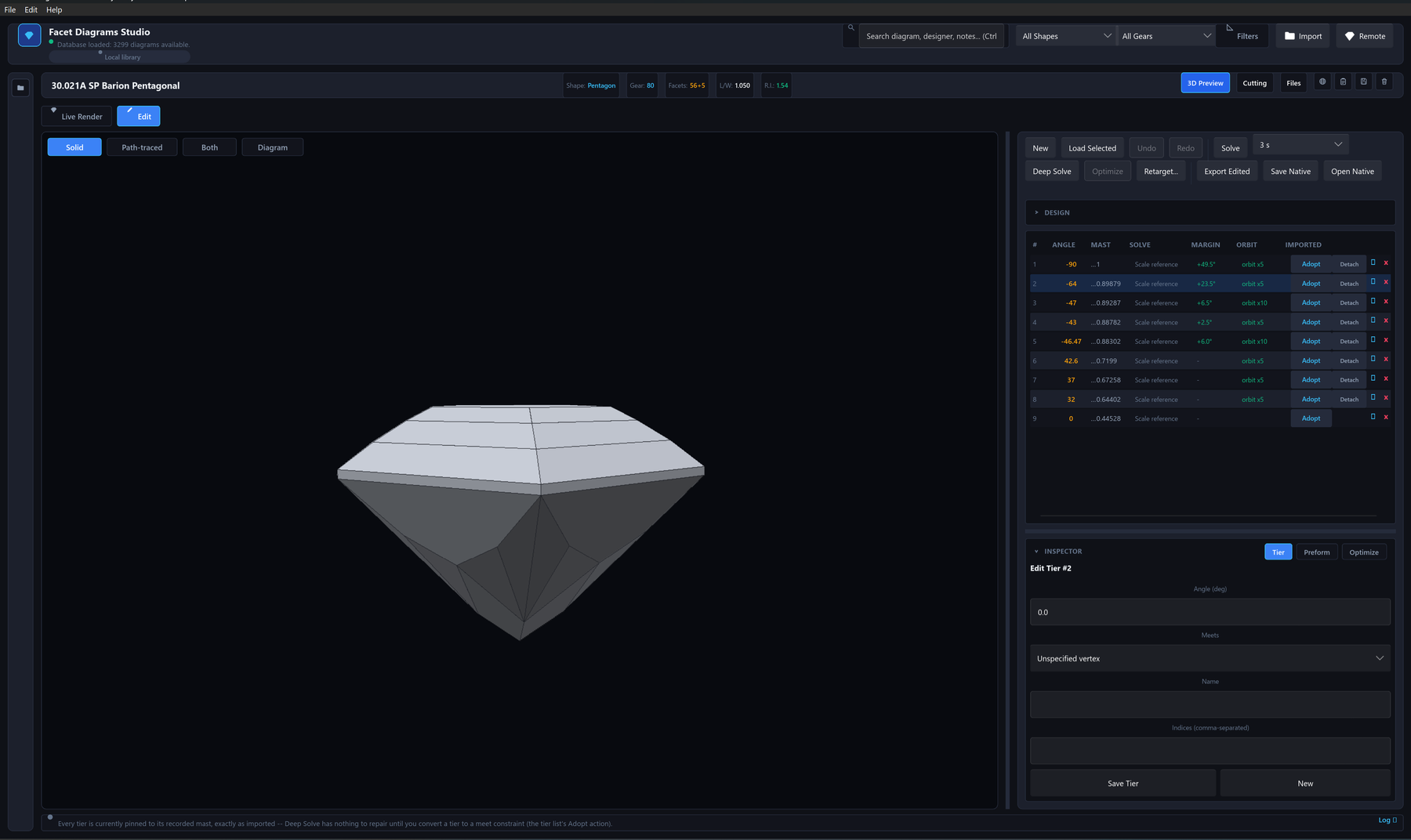

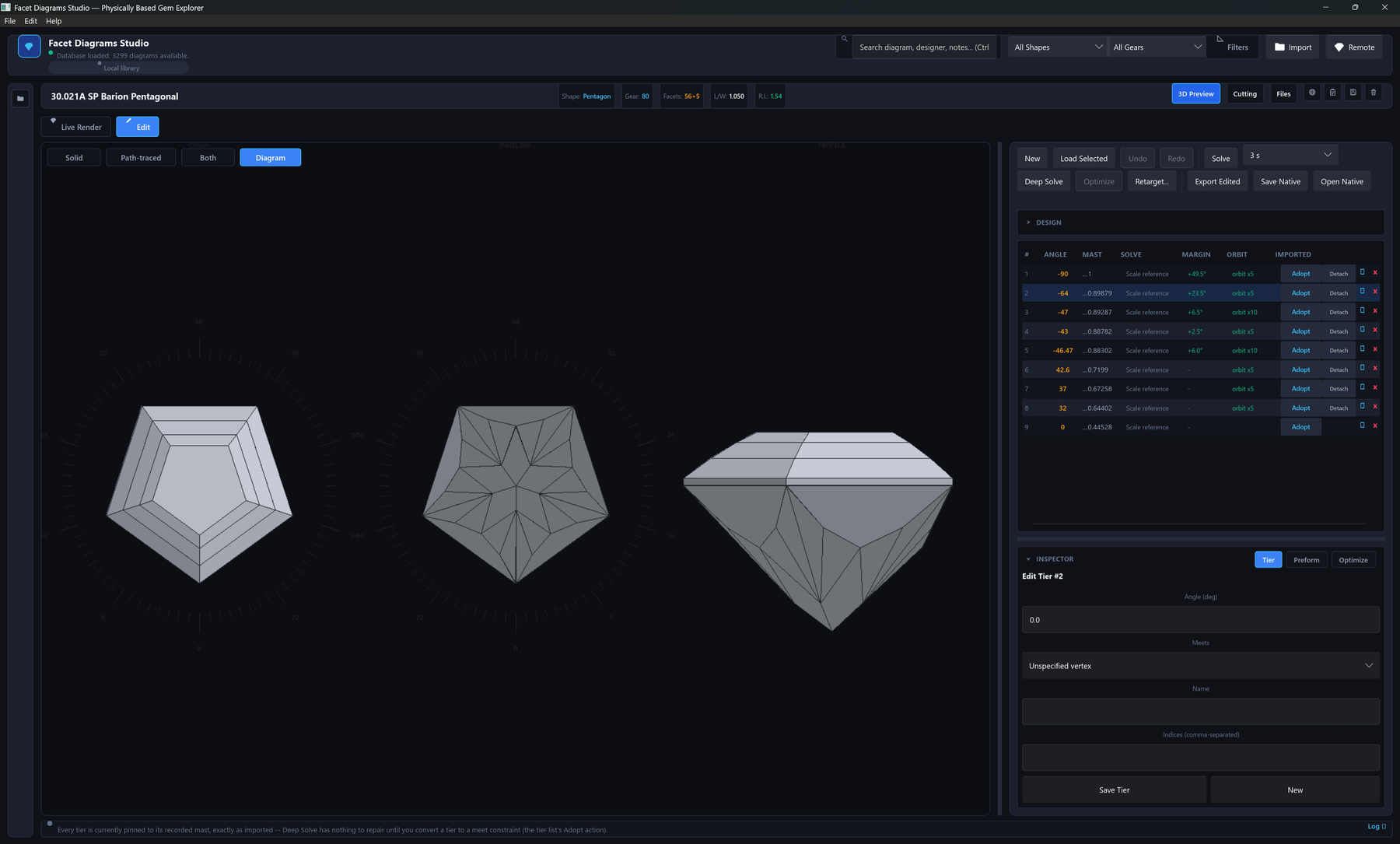

The cutting instructions are treated as a constraint graph rather than a static list of numbers. The meet-point solver (crates/indicatrix/src/geometry/meet_solver) resolves each facet's cutting depth from its meet constraints in dependency order, and can anchor an otherwise-unconstrained schedule against a design's own printed C/W/P/W proportions (meet_solver/anchors.rs). On top of the solver, indicatrix-cut-core provides rough preforms (preform.rs), a coordinate-search angle optimizer (optimize/), and manufacturability checks — vanishing or undersized facets, gear-quantization errors, out-of-order meets (manufacturability/). Designs round-trip through GemCAD .asc import/export and Indicatrix's own .indicatrix.toml sidecar format (crates/indicatrix-formats/src/native), which preserves constraints and preforms that a plain .asc file cannot express. Two further formats import and open directly, converted to .asc cutting instructions: .gcs (Gem Cut Studio), read per the file description in that program's 1.1 manual and checked against 59 real files, with an experimental writer; and .gem (GemCAD's own binary save format, which has no published specification), whose geometry — every facet plane, tier, name and cutting note, plus gear, symmetry and refractive index — is decoded from the binary and verified against a corpus of 254 files. Neither reader is affiliated with or endorsed by those tools' authors. See the file-format table.

For a cutter at the machine, the cutting instructions double as a printable cutting sheet: each solved mast converts to a real cutting depth and an unsigned dial reading in millimetres, cheater/azimuth offsets are applied to the printed geometry so the sheet matches what the solid view and tracer show, and a facet can target a girdle thickness or table width in millimetres directly instead of a dimensionless mast (indicatrix-cut-core/src/cutting_sheet.rs, design/targets.rs). Every tier keeps a stable id across edits and file round trips, and the preform module reports volumetric yield and an estimated carat weight from the rough (yield_metrics/). Beyond a single design, the beta Rough planner (Library → Plan Rough...) takes a rectangular block of rough and plans across the whole design library, or the current filter: it ranks up to 10 layouts of up to 99 stones by total carats, each with a sawing plan of slabs, bars and pieces (rough_plan/; see the studio page). See the studio page for the guidance UI (empty-state cards, a template gallery, an in-app worked example, and a keyboard-shortcut overlay) built around this workflow.

6Materials

Indicatrix ships 32 built-in gem materials in crates/indicatrix/src/optics/materials.rs, each with a dispersion fit either transcribed from a primary optical-constants paper or derived from corroborated gemological reference values (the source code documents which, per material). The same 32 materials, plus any custom material you save in the desktop studio, back one shared catalogue used by both the renderer's material picker and the CAD editor's design settings, so a species available in one is available in the other. The chart below evaluates a subset of these dispersion curves live in your browser; the full table, the shared catalogue, and how an imported design's material is inferred (and flagged as a guess) are on the materials page.

7Distributed rendering

The asymmetry is the design: the desktop sends a scene description and sample-range requests, the worker sends back accumulated radiance. Network identifiers are blurred.

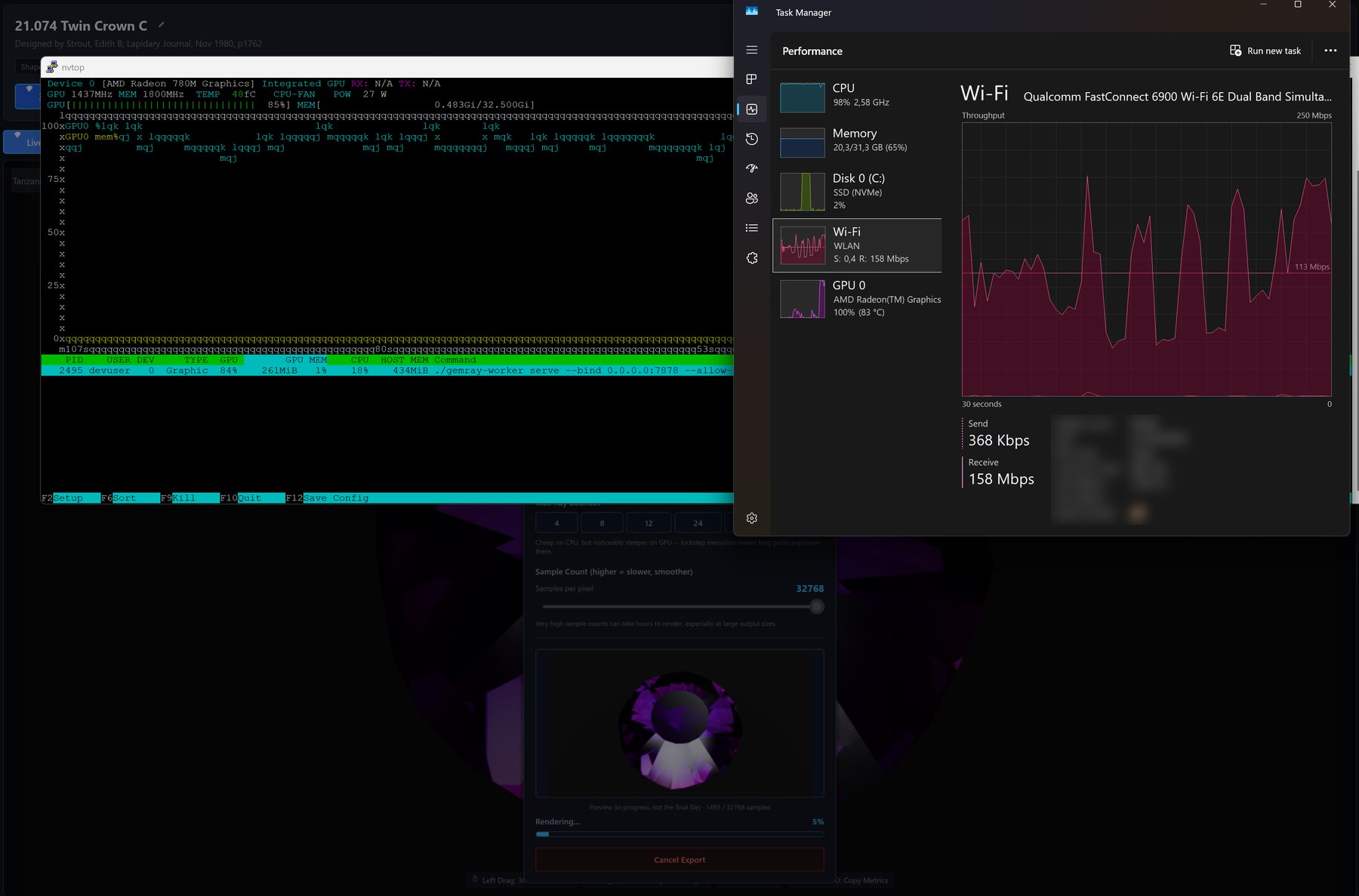

The viewport renders locally while the camera moves, then hands off sample tracing to one remote endpoint, a coordinator (indicatrix-worker serve), once the camera settles. Because each sample's contribution is additive and order-independent, work is partitioned by sample-index range rather than by screen tile, which avoids the load imbalance that tiling causes on a gemstone (most of the frame is background, a few facets absorb most of the bounce budget). The coordinator traces with its own CPU/GPU when started with --render, and splits exports across the render workers that dial out to it with indicatrix-worker join — no inbound port on the worker, so machines behind NAT or cloud VMs can join — surviving a worker that drops out mid-job. In Local + Remote mode the desktop and the coordinator share one sample budget, so their samples are combined, never duplicated. Results travel losslessly compressed (35–50 % smaller on measured frames), or as a finished picture only when bandwidth matters more than combining with local samples, and HDR environment maps travel by content hash so HDR-lit scenes can render remotely too, wherever the remote advertises HDR support. Every connection is mutual TLS 1.3 (rustls, TLS 1.2 compiled out) with one-time token enrollment, so a new client or worker can pair with a coordinator without a manual certificate exchange. See the distributed rendering page for the protocol and the indicatrix-worker CLI.

8Workspace

9Getting started

Nothing to install: the browser version is at live.indicatrix-suite.com (what it can and cannot do is on the web app page). For the design library, GPU and remote rendering, install the desktop application as below.

# Linux/macOS
curl --proto '=https' --tlsv1.2 -sSf https://sh.rustup.rs | sh

# Windows (or download rustup-init.exe from https://rustup.rs) --
# rustup's installer also offers to set up the MSVC C++ build tools it needs
winget install --id Rustlang.Rustup

# either platform: make sure the toolchain is current --
# indicatrix needs rust-version 1.95 or newer (workspace Cargo.toml)
rustup update stable

# CPU-only build
cargo install indicatrix-cut

# with the GPU path-tracing backend
cargo install indicatrix-cut --features gpu

# HDR environment-map (.hdr) loading is always included, not a separate feature

# then start it
indicatrix-cut

# optional: the coordinator / remote render worker (add --features gpu for the GPU tracer)
cargo install indicatrix-worker --features worker

# on the coordinator: serve the library and render with this machine's own CPU/GPU
# (serve no longer renders by default; --render turns that on)
indicatrix-worker serve --bind 0.0.0.0:7878 --allow-remote \
  --ca pki/ca.pem --cert pki/server.pem --key pki/server.key --render

# on any further machine: dial out to the coordinator's worker port and render for it
indicatrix-worker join coordinator.local:7880

The certificates and one-time enrollment tokens both commands need are set up with indicatrix-worker cert; the full walkthrough is on the distributed rendering page.

# clone and build
git clone https://github.com/suitable-name/indicatrix.git
cd indicatrix
cargo run -p indicatrix-cut --release

# with the GPU compute kernel
cargo run -p indicatrix-cut --release --features gpu

# scene.json is a serialized indicatrix-net SceneState
cargo run -p indicatrix-worker --features worker -- render \
  --scene scene.json \
  --out render.png \
  --width 3840 \
  --height 2160 \
  --samples 8192

Rust edition 2024, rust-version = "1.95" (workspace Cargo.toml). Windows and Linux are the platforms exercised by this repository's own build scripts (scripts/pgo-build.ps1, scripts/pgo-bolt-build.sh); macOS is not currently tested. The desktop app writes a log file (indicatrix-cut.log, next to the executable, falling back to the temp directory) for diagnosing a background-thread failure; verbosity follows RUST_LOG, defaulting to warn everywhere and info for indicatrix/ indicatrix_cut (apps/indicatrix-cut/src/main.rs).

10Roadmap

11Status and limitations

• The faceting CAD (indicatrix-cut-core and the editor UI in apps/indicatrix-cut) is beta; its interaction model is still changing.
• indicatrix-web is the browser build (live.indicatrix-suite.com, described on the web app page). It renders on the CPU in Web Workers (slower than the desktop's GPU path, so a few hundred samples take a while on a laptop), edits and solves designs with the same engine as the desktop, and keeps a design only for the life of the browser tab, so save your work as downloads. It has no design library, remote rendering, Deep Solve or GPU renderer — see its own README.md for the limits.
• The GPU compute path requires a wgpu-supported adapter with at least 11 storage buffers per shader stage (MEGAKERNEL_STORAGE_BUFFERS, crates/indicatrix/src/renderer/gpu/context.rs); without one, rendering falls back to the CPU tracer.
• macOS is not mentioned in the workspace README or build scripts and is not known to have been tested.
